Tubular Deployment Technologies

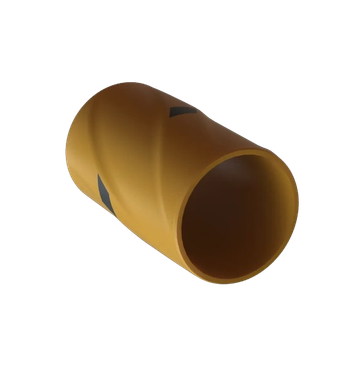

The  GeoGLIDER® XTREME centralizer is a unique three (3) bladed centralizer with offset contact points with a combined total contact area

≤ 5 sq-in resulting in friction factors as low as 0.05 in open hole averaging < 0.20 friction factors in all applications.

The GeoGLIDER® XTREME centralizer comes standard made from composite material, however, Aluminum, Zinc or Steel variants can also be provided on request.

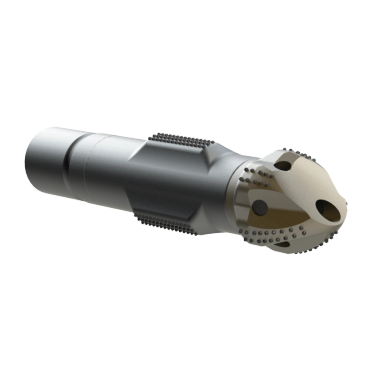

The GeoMOLE™ is based on the success of the GeoproHYDRA™ reamer housing and thus uses the same TCI cutting structure across all the cutting face and can also be configured with drillable Aluminum or Bronze-Copper alloy nose with TCI cutting structure.

The GeoMOLE™ can be further configured with single or double floats or with stab-in profiles for efficient cement operations in large bore holes and casing strings.

The GeoMOLE™ can be configured for bicentric applications in under-reamed holes.

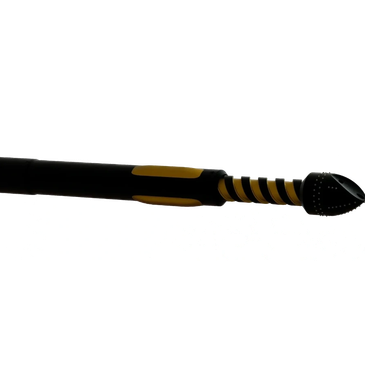

The GRS360™ was primarily designed for completion strings and for operations where circulation or high circulation is not a feasible or viable option.

The GRS360™ comes standard with an internal spring mechanism embedded internally to the tool and delivering a constant force of one (1) tonne directly to the telescopic mandrel and consequently the nose. It is operated by reciprocating the string which then telescopes the nose out and in in a combined 5 complete rotations or 1800 degrees.

The GRS360™ can also be modified for up to 10 revolutions of 3600 degrees in a complete cycle of reciprocating up/down. Further modifications include the ability to include float valves and also modify it to be drillable. In this variants and depending on the casing size-to-hole size-to required drill out bit diameter, a spring may not feasible.

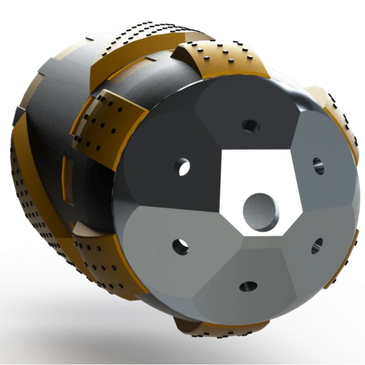

The GeoproHYDRA™ is a high speed, extremely robust and reliable hydraulically actuated reamer shoe system. It has been deployed on every continent besides Antartica and continues to set new standards and benchmarks in the space.

The GeoproHYDRA™ is an infinitely customizable reamer shoe system and boasts such additional features such as being able to be rotated while in operation and at the same time providing customers with the added advantage of better cement bond at the shoe to meet drill ahead conditions and quicker drilling out of the  GeoproHYDRA™, typically 50 minutes or less.
